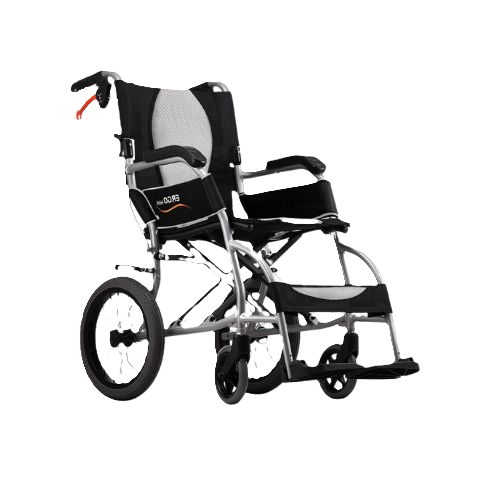

Karma Ergo Lite Wheelchair

Ultra-Lightweight & Sturdy

Karma’s lightest wheelchair, weighing a mere 8.6 kg and featuring transport wheels and fixed footrests, Ergo Lite is perfect for those seeking a durable travel wheelchair, and because its crash test approved, you can go further than ever!



Size :

Firmness

Matress Size

Lift Chair

Mattress Adjustable

Bundle Position:

Product Options

Quantity

Request a Quote

SKU:2-KM2501-16

Dimensions
Width Height Depth 90 CM 93 CM 56 CM
Product Dimension
Size L (cm) W (cm) H (cm) W
93 56 90 8 /media/5omb4l3p/karma-ergo-lite-wheelchair-1.png
93 61 90 8 /media/5omb4l3p/karma-ergo-lite-wheelchair-1.png



Product Model Ergo Lite (KM-2501)
Nominal seat width (mm/in)* 400 / 16 450 / 18
Nominal seat depth (mm/in)** 430 / 16 420 / 16
Front caster / Rear wheel size (in) 6 / 14 6 / 14
Backrest height (mm) 420 420
Headrest height above seat (mm) N/A N/A
Armrest to seat distance (mm) 210 210
Front location of armrest structure (mm) 310 310
Seat surface height at front edge (mm) 480 480
Footrest to seat distance (mm) 395 ~ 410 395 ~ 410
Effective seat width (mm) 400 450
Effective seat depth (mm) 420 420
Seat plane angle (X°) 5 5
Backrest angle (X°) 11 11
Seat to backrest angle (X°) 96 96
Leg to seat angle (X°) 102 102
Overall length with legrest (mm) 930 930
Overall width (mm) 560 610
Overall height (mm) 905 905
Folded length (mm) 830 830
Folded width (mm) 275 280
Folded height (mm) 700 710
Total mass (kg) 8.6 8.8
Mass of the heaviest part (kg) 8.6 8.8
Maximum user weight (kg) 100 100
Minimum turning radius (mm) 670 670
Minimum turning radius without user (mm) 740 740
Pivot width (mm) 1050 1050
Static stability downhill (X°) 16 16
Static stability uphill (X°) 11.5 (with anti-tippers) 11.5 (with anti-tippers)
Static stability sideways (X°) 16 16
Handrim diameter (mm) N/A N/A
Horizontal location of axle (mm) 5 5

Manual ver.25

Remark :
* Nominal seat width is measured the width of seat cushion at 120mm in front of the backrest. This value is mainly used in the product ordering process.
*** Nominal seat depth is measured from the front end of the seat cushion to the back cushion. This value is mainly used in the product ordering process.
– The actual product specifications differ from the data in the table by ±1 cm ±0.5 kg.
– The actual product specifications may vary according to different configurations.
– KARMA reserves the right to modify information herein without further notice.

Product Description

Ergo Lite

Ultra-Lightweight & Sturdy

Karma’s lightest wheelchair, weighing a mere 8.6 kg and featuring transport wheels and fixed footrests, Ergo Lite is perfect for those seeking a durable travel wheelchair, and because its crash test approved, you can go further than ever!

We strive to make the caretaker’s life easier. Weighing at a mere 8.6 kg, the ultra-lightweight lowers the risk of back injuries by reducing the physical effort required to lift it.

Push & Pull Brake System

Ideal for caregivers who can’t continuously bend over to park the wheelchair. Just push the attendant brake to park the chair and pull to unlock.

Easy to Transport and Store

Convenient and suitable for elderly caregivers to take care of elderly users. Easy to carry and fold for storage

KARMA Technology

S-Ergo Seating System

The S-Ergo Seating is globally patented in many countries. The seating provides the wheelchair user with basic pressure relief without having to purchase a foam cushion. While a foam cushion can be cumbersome and pricey, the S-Ergo Seating frame is lightweight and simple, offering the short-term wheelchair user an inexpensive option.
Documentation
Product User Manual (PDF | 2.6 MB)
Protect, Care and Warranty
Care Instructions

In order to lengthen the life of your wheelchair, it is suggested that you clean the wheelchair periodically (if not daily), especially after it is used in the rain or snow.

We suggest that you don't use your wheelchair in the rain or snow. If you are traveling and get caught in the rain, we suggest you try to find shelter whilewaiting it out. If you can't find shelter, proceed to your destination.

Frame
Wipe the frame with a damp cloth.

Upholstery
When cleaning the upholstery, use warm water and a mild soap.
Upholstery cleaner/foam can also be used, but avoid other cleaning solvents.
