Karma KP25.2

Karma
Specify all product options to determine final product price.
The “KP25.2” has a foldable frame and comfortable seat upholstery, the user of the “KP25.2” will find this wheelchair great value. The built-in multi-functional controller takes you where you want to go.
It’s designed to provide easy access and removal of the batteries, making transport even more convenient.
Its polished shape, easy access freewheel levels, flip-back and height adjustable armrests assure a fashionable, reliable and easy to use powered wheelchair whenever and wherever.
Please choose all product options to determine final product price.
Dimensions
Width Height Length 96 CM 98 CM 59 CM
Product Dimension
Size L (cm) W (cm) H (cm)

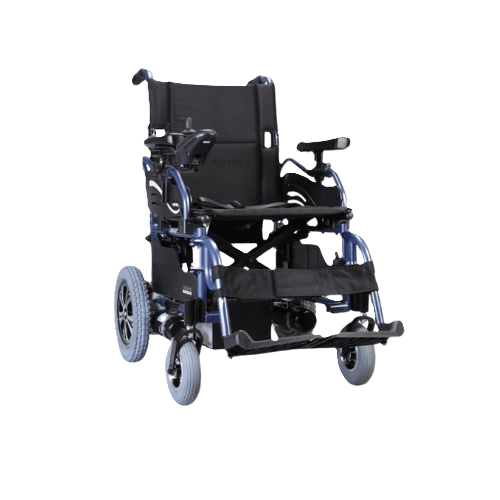

98 59 96 /media/i2mp1ymw/karma-kp252-3.png
Product Model KP-20 Series
Nominal seat width
(mm/in)*		 410 / 16 460 / 18 515 / 20
Nominal seat depth (mm/in)** 430 / 16 480 / 18 480 / 18
Front caster / Drive wheel size (in) 8 / 12 8 / 12 8 / 12
Backrest height (mm) 450 ~ 525 450 ~ 525 450 ~ 525
Headrest height above seat (mm) N/A N/A N/A
Armrest to seat distance (mm) 225 ~ 285 225 ~ 285 225 ~ 285
Front location of armrest structure (mm) 245 ~ 500 245 ~ 500 245 ~ 500
Seat surface height at front edge
(mm)		 525 525 525
Footrest to seat distance (mm) 360 ~ 445 350 ~ 435 350 ~ 435
Effective seat width (mm) 430 480 530
Effective seat depth (mm) 470 515 515
Seat plane angle (X°) 6 6 6
Backrest angle (X°) 11 11 11
Seat to backrest angle (X°) 95 95 95
Leg to seat angle (X°) 110 110 110
Overall length with legrest (mm) 985 ~ 1115 985 ~ 1115 985 ~ 1115
Overall width (mm) 590 640 690
Overall height (mm) 960 ~ 1035 960 ~ 1035 960 ~ 1035
Folded length (mm) 755 755 755
Folded width (mm) 380 395 395
Folded height (mm) 910 910 910
Total mass (kg) 67.0 67.6 67.6
Total mass without batteries (kg) 35.7 36.3 36.3
Mass of the heaviest part (kg) 30.0 30.6 30.6
Maximum user weight (kg) 115 / 135 (pneumatic tires)
Motor power (W) 200 200 200
Battery capacity (Ah) 50*2 50*2 50*2
Charger output current
(A)		 6 6 6
Drive range (km) *** 32 32 32
Battery Compartment (L x W x H)
(mm)		 220 x 170 x 175 (Single Compartment)
Maximum speed forward (km) 6 6 6
Minimum braking distance from
max speed (mm)		 1000 1000 1000
Obstacle climbing (mm) 50 50 50
Ground clearance (mm) 60 60 60
Minimum turning radius (mm) 780 955 1130
Minimum turning radius without
user (mm)		 650 825 1000
Reversing width (mm) 1180 1220 1260
Static stability downhill
(X°)		 16 16 16
Static stability uphill
(X°)		 14 14 14
Static stability sideways
(X°)		 16 16 16
Dynamic stability uphill
(X°)		 6 6 6
Ability to climb rated slope (X°) 12 12 12

Electric ver.20


Remark :
* Nominal seat width is measured the width of seat cushion at 120mm in front of the backrest. This value is mainly used in the product ordering process.
** Nominal seat depth is measured from the front end of the seat cushion to the back cushion. This value is mainly used in the product ordering process.
*** Drive range/ Ability to climb rated slope are estimated based on the following conditions: 20℃~35℃, 115kg occupant, brand new fully charged batteries and driving on the flat road.
– The actual product specifications differ from the data in the table by ±1 cm ±0.5 kg.
– The actual product specifications may vary according to different configurations.
– KARMA reserves the right to modify information herein without further notice.

Product Description
The “KP25.2” has a foldable frame and comfortable seat upholstery, the user of the “KP25.2” will find this wheelchair great value. The built-in multi-functional controller takes you where you want to go.
It’s designed to provide easy access and removal of the batteries, making transport even more convenient.
Its polished shape, easy access freewheel levels, flip-back and height adjustable armrests assure a fashionable, reliable and easy to use powered wheelchair whenever and wherever.
Documentation
Product Brochure (PDF | 205 KB)
Product User Manual (PDF | 205 KB)
