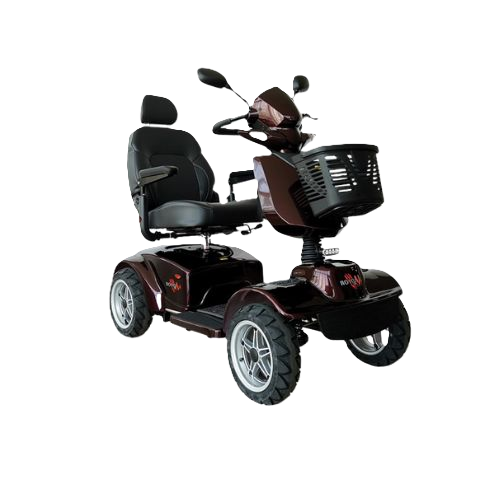

Merits Raptor

New sporty streamline design
Full suspension system with shock absorbers which delivers a smooth, comfortable ride
Large 14” wheels which provide greater ground clearance
Modern LED lighting system delivers a brillian light with less power consumption
Digital LCD dashboard display: time display, battery gauge, temperature, maintenance messages, speed display and odometer
Extra storage space beneath tiller
Half speed safety switch which operates automatically when turning to provide extra safety
With Merits 4PT (4 pole technology) and large controller & motor delivering much more power for climbing steep driveways and hills
With new easy to access 12-volt socket
Available in wide seat version

Request a Quote

Ask for Quote

Name

Company Name (optional)

Phone

Comment

Dimensions

	Size	L (cm)	W (cm)	H (cm)
		152	71	135	/media/q0fnmp5k/merits-raptorr.png

Dimensions cm/in

Overall Dimension: A x B x C	152 x 71 x 135cm/60 x 28 x 53"
Seat Dimension : D x E x F	56 x 50 x 56cm/22 x 20 x 22"
Seat Dimension (Wide Seat version): D x E x F	80 x 46 x 51cm/31.5 x 18 x 20"
Seat Height from Ground : G	56-64cm/22-25"
Seat Height from Deck : H	40-48cm/16-19"
Wheel Base : I	104cm/41"
